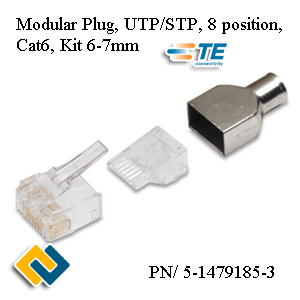

Modular Plug UTP/STP 8 position Cat6 Kit 6-7mm

Modular Plug UTP/STP 8 position Cat6 Kit 6-7mm

Product Type Features:

• Product Type = Connector
• Performance Category = Cat 6
• Cable Style = Round
• Latch Style = Standard
• Keyed = No

Dimensions:

• Cable Diameter Range (mm [in]) = 6.00 – 7.00 [0.236 – 0.280]
• Conductor Insulation Diameter (mm [in]) = 0.89 – 1.09 [0.035 – 0.043]
• Conductor Outer Diameter (mm [in]) = 0.89 – 1.00 [0.035 – 0.040]
• Cable Jacket Outer Diameter Range (mm [in]) = 6.00 – 7.00 [0.236 – 0.280]

Body Features:

• Conductor Type = Solid
• Shield Material = Brass
• Shield Plating = Nickel

Contact Features:

• Contact Base Material = Phosphor Bronze
• Contact Plating, Mating Area, Material = Gold (50)
• Solder Tail Contact Plating = Gold Flash over Nickel

Housing Features:

• Connector Style = Plug - Modular
• Housing Material = Polycarbonate GF

Configuration Features:

• Number of Contacts Loaded = 8
• Shielded = Shielded/Unshielded
• Number of Positions = 8
• Small Conductor = No
• Conductor (Wire) Size = 23 - 24 AWG

Industry Standards:

• RoHS/ELV Compliance = RoHS compliant, ELV compliant
• Lead Free Solder Processes = Not relevant for lead free process
• RoHS/ELV Compliance History = Always was RoHS compliant
• UL Flammability Rating = UL 94V-2

Packaging Features:

• Packaging Method = Box/Carton
• Qty./Box = 100

Product Availability:

• Region = Asia, EMEA, North America, Latin America, Australia/New Zealand

Other:

• Brand = AMP
