Cáp đồng trục, cáp ăng ten, cáp truyền hình RG11 Alantek (Flooding Compound)

Thương hiệu: RG11 Alantek
Danh mục: Cáp đồng trục

3.500.000 VND

Gọi báo giá: 0385 90 8282 Chat Zalo

Chi tiết sản phẩm Cáp đồng trục, cáp ăng ten, cáp truyền hình RG11 Alantek (Flooding Compound)

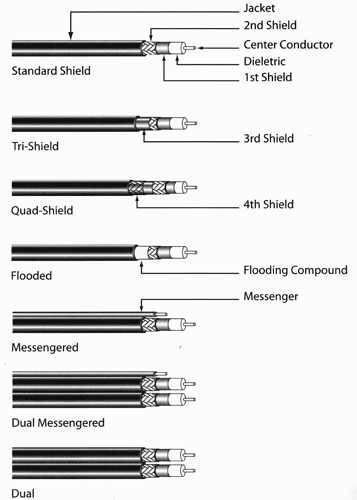

Cable Physical Construction

Component	Standard Shield		Tri-Shield		Quad-Shield
Component	Inches	mm	Inches	mm	Inches	mm
Nominal Center Conductor Diameter	0.064	1.63	0.064	1.63	0.064	1.63
Nominal Diameter Over Dielectric	0.280	7.11	0.280	7.11	0.280	7.11
Norminal Diameter Over First Shield (Tape)	0.287	7.29	0.287	7.29	0.287	7.29
Norminal Diameter Over Jacket	0.395	10.03	0.395	10.03	0.405	10.29
Norminal Jacket Wall Thickness	0.042	1.07	0.039	0.99	0.037	0.94
Norminal Diameter of Steel Messenger	0.072(single)	1.83	0.072(single)	1.83	0.072(single)	1.83
Norminal Diameter of Steel Messenger	0.109(dual)	2.77	0.109(dual)	2.77	0.109(dual)	2.77
Shield: Foil	Aluminum Laminated Foil, Bonded to Dielectric
Shield: 2nd Foil	N/A		Alu. Laminated Foil		Alu. Laminated Foil
Braid:	Aluminum Wire, 60% Coverage
Braid: 2nd Braid	N/A		N/A		Aluminum Wire, 40% Coverage

Part #	Description
301-RG1100-SSBK-2223	RG11 Standard Shield 75Ω Coaxial Cables
301-RG110F-SSBK-2223	Alantek RG-11 Standard Shield Coaxial w/ Flooding Compound
301-RG1100-QSBK-2223	RG11 Quad-Shield 75Ω Coaxial Cables
301-RG110M-3SBK-2223 Alantek RG11 Tri- Shield Coaxial with messenger
