Cáp đồng trục, cáp ăng ten, cáp truyền hình RG6 Alantek (Flooding Compound)

1.820.000 VND

Gọi báo giá: 0385 90 8282 Chat Zalo

Chi tiết sản phẩm Cáp đồng trục, cáp ăng ten, cáp truyền hình RG6 Alantek (Flooding Compound)

Mô tả thông số kỹ thuật:Cáp đồng trục, cáp ăng ten, cáp truyền hình RG6 Alantek

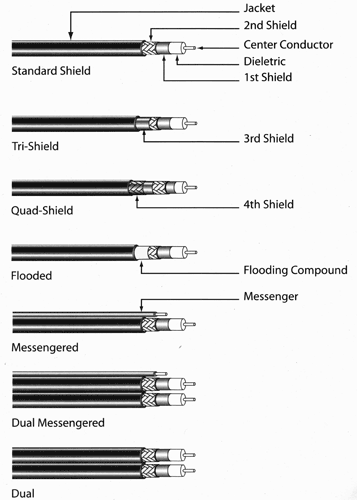

Cable Physical Construction

Component	Standard Shield		Tri-Shield		Quad-Shield
Component	Inches	mm	Inches	mm	Inches	mm
Nominal Center Conductor Diameter	0.040	1.02	0.040	1.02	0.040	1.02
Nominal Diameter Over Dielectric	0.180	4.57	0.180	4.57	0.180	4.57
Norminal Diameter Over First Shield (Tape)	0.187	4.75	0.187	4.75	0.187	4.75
Norminal Diameter Over Jacket	0.272	6.91	0.278	7.06	0.300	7.62
Norminal Jacket Wall Thickness	0.030	0.76	0.030	0.76	0.034	0.86
Norminal Diameter of Steel Messenger	0.051(single)	1.30	0.051(single)	1.30	0.051(single)	1.30
Norminal Diameter of Steel Messenger	0.072(dual)	1.83	0.072(dual)	1.83	0.072(dual)	1.83
Shield: Foil	Aluminum Laminated Foil, Bonded to Dielectric
Shield: 2nd Foil	N/A		Alu. Laminated Foil		Alu. Laminated Foil
Braid:	Aluminum Wire, 60% Coverage
Braid: 2nd Braid	N/A		N/A		Aluminum Wire, 42% Coverage

Part #	Description
301-RG0600-SSWH-1223	Alantek RG-6 Standard Shield Coaxial, White / Black
301-RG0600-3SWH-1223	Alantek RG-6 Tri-Shield Coaxial White
301-RG0600-QSBK-1223	RG6 Quad-Shield 75Ω Coaxial Cables
301-RG060F-SSBK-1223 Alantek RG-6 Standard Shield Coaxial c/w Flooding compound
